What is an Air Needle Scaler and How Does It Work?

If you work in metal fabrication, shipbuilding, automotive maintenance, or industrial surface preparation, you may have encountered air needle scalers as a powerful tool for removing rust, paint, and other coatings. But what exactly is an air needle scaler, and how does it work? This article will introduce you to this essential pneumatic tool, its applications, and how it can improve your workflow.
________________________________________

1. What is an Air Needle Scaler?

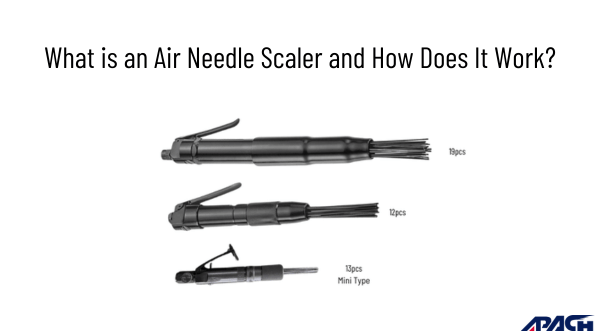

An air needle scaler, also known as a pneumatic needle scaler, is a tool designed to remove corrosion, paint, scale, and debris from metal surfaces. It operates using compressed air to drive multiple thin steel needles back and forth at high speeds, effectively chipping away surface contaminants without causing excessive damage to the underlying material.

Key Features of an Air Needle Scaler:

✅ Multiple Needles – Typically consists of 12 to 19 steel needles that strike the surface rapidly.
✅ Pneumatic Power – Powered by compressed air, making it highly effective for heavy-duty cleaning.
✅ Adjustable Needle Force – Some models allow for adjustable needle pressure to handle different materials.
✅ Compact Design – Lightweight and ergonomic for easy maneuverability.
________________________________________

2. How Does an Air Needle Scaler Work?

An air needle scaler operates by using compressed air to push the internal piston back and forth. This piston movement drives the bundle of steel needles, allowing them to strike the surface in rapid succession. The repeated hammering action effectively breaks down rust, paint, or other coatings without excessive grinding or heat buildup.

Step-by-Step Process:

1.  Connect to an Air Compressor – Ensure that the tool is connected to a compressed air source with the correct PSI (usually 90 PSI).
2.  Position the Needles on the Surface – Hold the tool at an angle to the work surface.
3.  Activate the Tool – Pull the trigger to engage the pneumatic mechanism.
4.  Needles Vibrate Rapidly – The steel needles move in a back-and-forth motion, chipping away unwanted material.
5.  Adjust Pressure if Needed – Some models allow adjustments to control needle intensity for different surface types.

The air-powered mechanism ensures continuous operation without overheating, making it ideal for industrial use.

For more instructions, check:
How to Use an Air Needle Scaler Efficiently and Safely
________________________________________

3. What is an Air Needle Scaler Used For?

Air needle scalers are versatile tools used in various industries. Their primary applications include:

•  Rust Removal – Essential for shipyards, automotive restoration, and metal maintenance to clean rust from metal surfaces.
•  Paint Stripping – Used in industrial painting and refurbishing projects to remove old paint coatings.
•  Weld Cleaning – Helps remove slag and spatter from weld joints to prepare surfaces for further processing.
•  Concrete Cleaning – Can be used for light surface texturing or removing residue from concrete structures.
•  Industrial Equipment Maintenance – Helps in cleaning machinery and tools that accumulate debris and buildup over time.

Industries That Use Air Needle Scalers:

✔ Automotive – Car repair shops use needle scalers to remove rust from vehicle frames and exhaust systems.
✔ Shipbuilding & Marine – Essential for maintaining steel ship hulls, removing marine growth, and preventing corrosion.
✔ Metal Fabrication – Prepares surfaces for welding or repainting in fabrication workshops.
✔ Construction – Used to clean and texture concrete or remove old coatings from structural metal.

Know more applications:
Rust Removal Applications Across Industries
Optimizing Ship Hull Maintenance with Professional Air Needle Scalers
________________________________________

4. Advantages of Using an Air Needle Scaler

✅ Efficient and Fast – Works much faster than manual rust removal methods like wire brushing.
✅ Minimal Surface Damage – Unlike grinders, which can remove too much material, needle scalers are gentler on the base metal.
✅ Pneumatic Power – Provides continuous operation without overheating, making it ideal for heavy-duty use.
✅ Versatile Applications – Works on metal, concrete, and even stone surfaces.
✅ Cost-Effective – Reduces the need for chemical strippers or expensive sandblasting.
________________________________________

5. How to Maintain an Air Needle Scaler for Long-Term Use

To ensure your air needle scaler remains in top condition, follow these maintenance tips:

•  Lubricate Regularly – Apply a few drops of pneumatic tool oil before and after use to prevent internal wear.
•  Clean After Use – Remove debris and dust from the needles to maintain efficiency.
•  Check Air Pressure – Use the correct PSI (typically 90 PSI) to avoid damaging the internal components.
•  Inspect Needles – Replace bent or broken needles to maintain optimal performance.
•  Store Properly – Keep in a dry place to prevent rust on the needles and internal parts.

For more detailed maintenance guidance, read:
Best Practices for Using an Air Needle Scaler: Safety and Maintenance Tips

________________________________________

6. How to Choose the Right Air Needle Scaler

When selecting an air needle scaler, consider the following factors:

•  Needle Count – More needles (e.g., 19 vs. 12) provide greater coverage for faster material removal.
•  Stroke Rate – Higher strokes per minute (SPM) mean quicker cleaning performance.
•  Ergonomic Design – Choose a lightweight model with a comfortable grip for extended use.
•  Durability – Look for hardened steel needles and a robust body to withstand tough working conditions.

For additional buying guidance, explore:

•     How to Choose the Right Air Needle Scaler for Your Job
•     Choosing the Right Air Needle Scaler for Automotive Restoration
•     5 Reasons You Need an Air Needle Scaler for Rust and Paint Removal

Quick Reference Table

Category	Details	Benefits / Applications
Power Source	Compressed air (typically 90 PSI)	Continuous operation without overheating
Needle Configuration	Usually 12–19 hardened steel needles	Covers larger surface areas for faster cleaning
Operating Mechanism	Internal piston moves needles back and forth at high speed	Breaks surface contaminants without excessive grinding
Primary Applications	Rust removal, paint stripping, weld cleaning, concrete texturing	Suitable for industrial surface preparation and maintenance
Common Industries	Automotive, shipbuilding, metal fabrication, construction	Supports heavy-duty industrial cleaning tasks
Surface Compatibility	Metal, concrete, stone, welded joints	Versatile across multiple materials
Main Advantages	Fast cleaning, minimal surface damage, cost-effective operation	Reduces labor time and avoids aggressive grinding
Maintenance Requirements	Lubrication, cleaning, needle inspection, proper storage	Extends tool lifespan and maintains performance
Selection Factors	Needle count, stroke rate, ergonomic design, durability	Helps users choose the right scaler for specific jobs

FAQs

1. What is an air needle scaler used for?

An air needle scaler is mainly used for removing rust, paint, slag, and surface contaminants from metal, concrete, and industrial surfaces. It is widely used in automotive repair, shipbuilding, construction, and metal fabrication.

2. How does an air needle scaler work?

It uses compressed air (typically 90–100 PSI) to drive a bundle of steel needles back and forth at high speed. The rapid impact chips away coatings and corrosion without excessive grinding or heat damage.

3. What air pressure should I use for an air needle scaler?

Most air needle scalers operate best at 90–100 PSI. Using too much pressure can damage the tool, while too little reduces cleaning efficiency.

4. Is an air needle scaler safe to use?

Yes, but only when proper safety precautions are followed. Users should wear PPE such as safety goggles, ear protection, gloves, and a respirator, and always follow safe operating procedures.

5. What industries commonly use air needle scalers?

They are widely used in:

•     Automotive repair
•     Shipbuilding and marine maintenance
•     Metal fabrication
•     Construction
•     Industrial equipment maintenance

________________________________________

Conclusion

An air needle scaler is a powerful and efficient tool for removing rust, paint, and other coatings from metal and concrete surfaces. By using pneumatic power, it delivers rapid needle strikes that clean surfaces without excessive grinding or heat damage. Whether you're working in automotive repair, shipbuilding, metal fabrication, or construction, an air needle scaler can significantly speed up surface preparation while ensuring precision.
At Apach, we offer high-performance air needle scalers designed for durability and efficiency. Contact us today to find the perfect pneumatic scaler for your needs!
